evoTractionBattery

Ansicht rechte Seite der evoTractionBattery 10Kw

The traction battery in different sizes

For mobility and mechanical engineering, lithium-ion technology promises high energy and power densities with a maximum service life. This favors electrification as well as the replacement of lead-acid batteries. Thanks to the high range of functions, system implementation is particularly easy. Traction batteries of the ecovolta brand enable the operation of commercial and industrial vehicles, construction and agricultural machinery, boats and special equipment.

Perfectly tailored to the efficient go-to-market

Maximum energy density and scalability

The round cells used with lithium-ion NMC cell chemistry promise high energy density. This gives you ideal capacities in a small installation space. The individual battery packs can be operated both in series and in parallel and can therefore be easily scaled.

Plug & Play, thanks to fully integrated range of functions

Compared to standard batteries, the evoTractionBattery offers additional functions such as charging communication and unlocking as well as display control. In addition, it does not require 12V on-board voltage.

Outstanding safety
features

The evoTractionBattery is developed according to automotive standards and, in addition to the SIL2 BMS, offers patented protection for each individual cell, redundant overcurrent monitoring and an all-pole disconnection function.

Learn more

Specifications

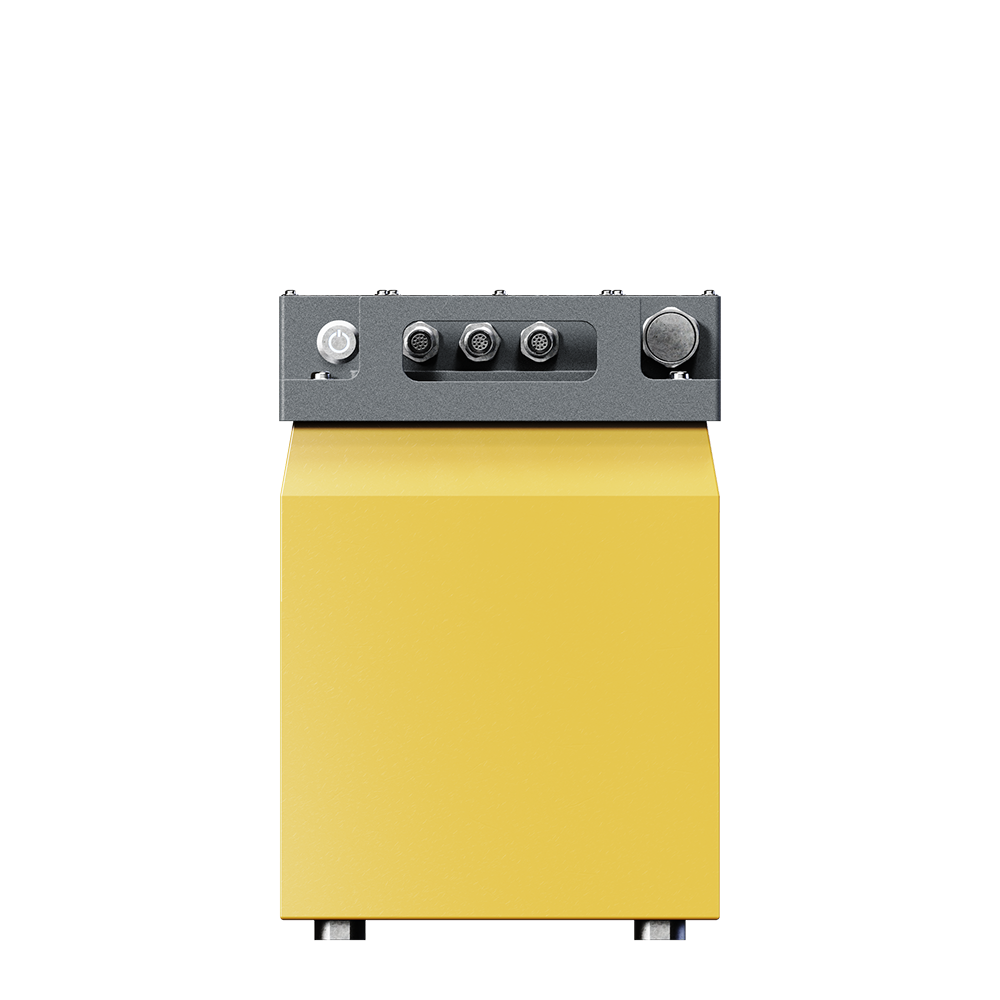

Ansicht der Vorderseite der evoTractionBattery 10Kw

Gross energy	4'973 Wh bis 14'918 Wh
Cell technology	Lithium-Ionen NMC (nickel-manganese-cobalt-oxide)
Nominal voltage	51, 8 V oder 103,6 V
Max. Discharge capacity (1s)	3 C
Total weight	35 kg bis 84 kg
Temperature range discharge	-25 °C bis +60 °C
Degree of protection	IP65
Battery Management System (BMS)	SIL2-Level
Certification	UN38.3, ECE-R 100, ECE-R 10
Comformity	RoHS, CE
Scalability	8 serial, up to15 parallel

To DOWNLOAD section

Options Kilowatt-hour

5 kWh

Ansicht rechte Seite der evoTractionBattery 5Kw

10 kWh

15 kWh

Ansicht rechte Seite der evoTractionBattery 15Kw

	5	10	15
Voltage	48 V oder 96 V	48 V oder 96 V	48 V oder 96 V
Capacity	4'973 Wh	9'946 Wh	14'918 Wh
Energy density	142 Wh/kg	169 Wh/kg	178 Wh/kg
Weight	35 kg	59 kg	84 kg
Dimension	522 x 222 x 213 mm	522 x 222 x 322 mm	522 x 222 x 437 mm
Technical Data	48 V 96 V	48 V 96 V	48 V 96 V

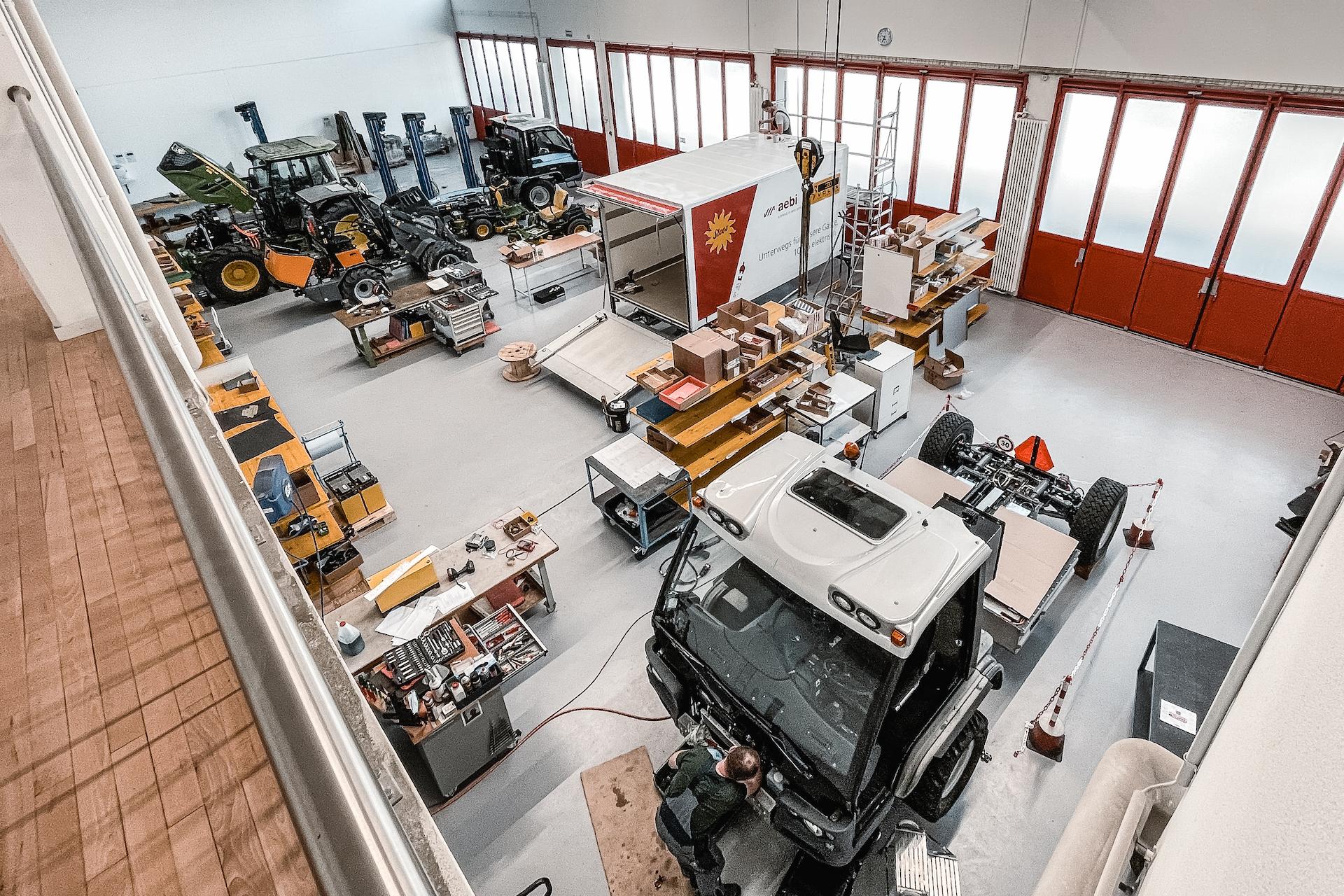

Prototypes & series products

ecovolta has its own departments for hardware and software development as well as for system integration. For full-service orders, there are established cooperations with strong engineering partners. This makes it easier for you to integrate the evoTractionBattery into prototypes and series products. If required, we also supply all additional components such as cables or on-board charging technology from a single source.

Schedule a consultation
