"ePowerUnit" The electric drive solution for the replacement of combustion engines

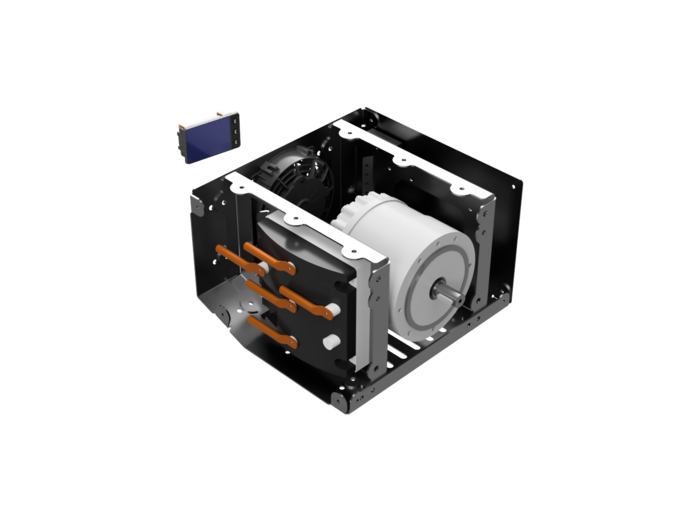

The ePowerUnit from novaziun AG is a complete, robust, electric drive unit. It consists of an electric motor, inverter, battery, control elements and cable harness. It replaces commercially available combustion engines in the power range of 5 - 15 kW (6.5 - 20 HP). The unit and the control software can be adapted very flexibly to customer-specific applications - for example, for retrofitting single-axle machines to electric operation.
Schuein, Switzerland
1x "eTB48-200-10"
Communal & Agricultural
Vehicle Information
Area of Application | Municipal & Agriculture |
---|---|
Dimensions (LxWxH) | 0.40 x 0.55 x 0.45 Meters |
Quantity | for 1 person |
Empty Weight | 40 kgs |
Max. Speed | 7 km/h |
Charging Time 20-80% | 2 h |
Operating Time | 3 h |
Propulsion | Two-Wheel Drive |
Motor Type | Synchronous |
Engine Continuous Power | 5 kW |
Engine Peak Power | 15 kW |
Special Features of the Vehicle |
|
Informationen zur Batterie
Systemtypologie | 1x «eTB48-200-10» |
---|---|
Energiemenge | 10 kWh |
Systemspannung | 51 V |
Max. Entladestrom | 432 A |
Gesamtgewicht Batterie | 59 kg |
Involved Companies
Client | novaziun AG |
---|---|
Vehicle Manufacturer / Brand | Aebi & Co AG Maschinenfabrik, Rapid Technik & more |
General Importer | Aebi & Co AG Maschinenfabrik, Rapid Technik & more |
System Integrator | novaziun AG |
Image Rights / Image Source | novaziun AG |
