Reference "Can-Am Traxter HD8 & HD10" | Utility Vehicle, Commercial Vehicle & Sports Car

Can-Am Traxter HD8 & HD10, Utility Vehicle & Sports Car

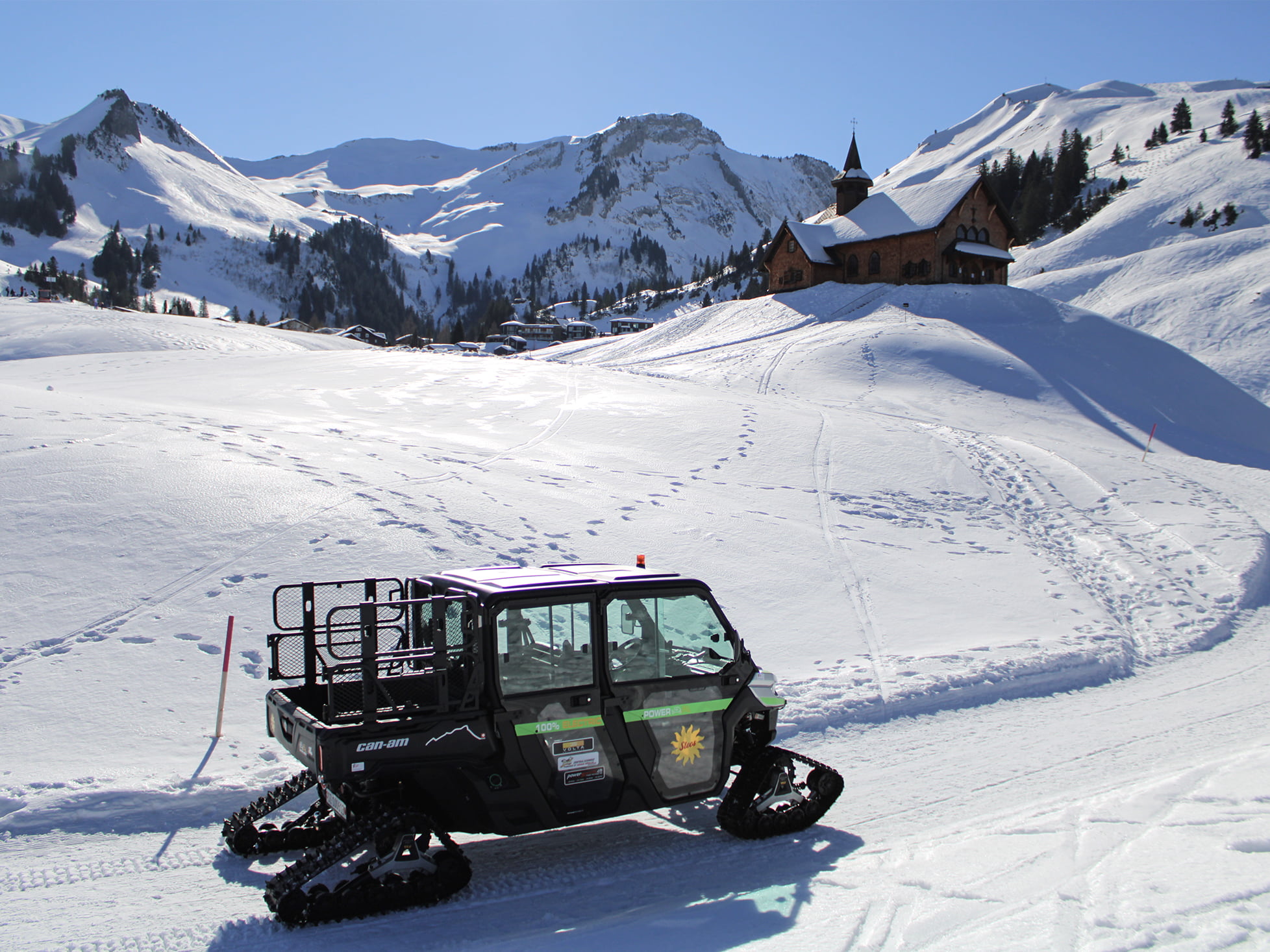

The UTV is a working tool for all areas. The tasks range from transport, taxi services, off-road work to traffic operations. The UTV combined with an evoKit 96 and 30 - 45 kWh battery capacity brings sustainability to the versatile fields of application.

Stoosbahnen, Riederalp, Brunwald
(Switzerland)

2x "eTB96-150-15 F" (parallel)

Sports Car & UTV

Contact us for your success project!

Vehicle Information

Area of Application	Commercial Vehicle & Sports Car, UTV
Dimensions (LxWxH)	3.071 x 1.575 x 1.93 Meters
Quantity	for 6 persons
Empty Weight	880 kgs
Additional Load	760 kgs
Towing Capacity	960 kgs
Payload	1'640 kgs
Max. Speed	60 km /h with wheel 30 km/h with caterpillar
Charging Time 20-80%	5 h
Range	120 – 180 km
Propulsion	All-Wheel Drive
Motor Type	Asynchronous
Engine Continuous Power	20 kW
Engine Peak Power	38 kW
Special Features of the Vehicle	Wheel & track drive Ground clearance All-terrain summer & winter Optional upgrade with winch

Battery Information

System Typology	2x "eTB96-150-15 F" (parallel)
Amount of Energy	30 kWh
System Voltage	103 V
Max. Discharge Current	780 A (2x 390 A)
Total Battery Weight	168 kgs (2x 84 kgs)

Involved Companies

Client	Friedli Fahrzeuge AG
Vehicle Manufacturer / Brand	BRP
General Importer	Friedli Fahrzeuge AG
System Integrator	ecovolta, a division of ecocoach AG
End Customer	Riederalp, Stoos Bahnen AG, Brunwald
Additional Partners	Garage Bürgler GmbH Schwyz
Image Rights / Image Source	ecovolta, a division of ecocoach AG & Stoos Bahnen AG
